Swivel Mount for POS Stands

The swivel mount can be used with the following stands:

• Simplicity Stand
• Any stand using the Stability Base (Pro, ID6)

NOTE: The swivel MUST be screwed or bolted into the countertop for mounting. Mounting hardware is NOT included.

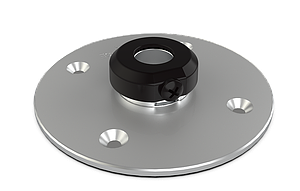

The stand swivel

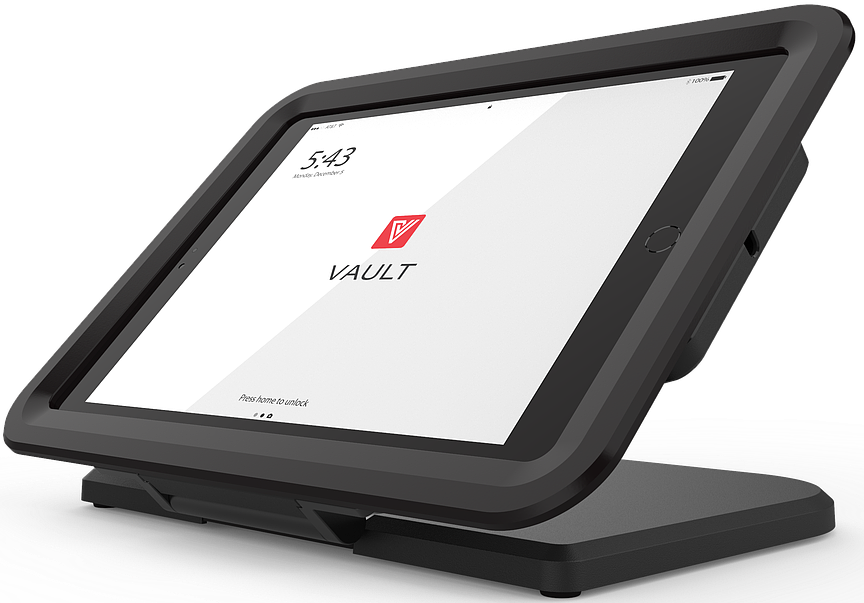

Stability Base, for use with POS enclosures

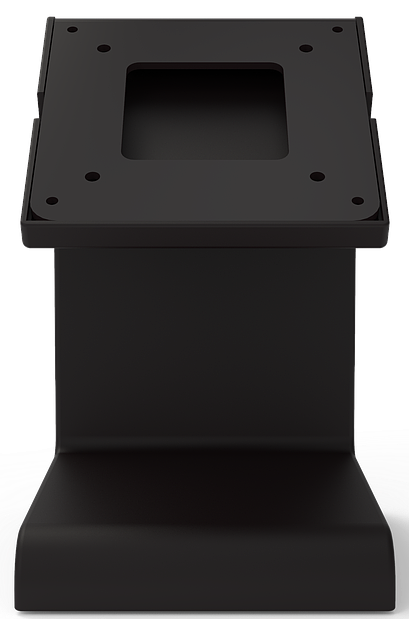

Simplicity Stand

Swivel Mount Installation

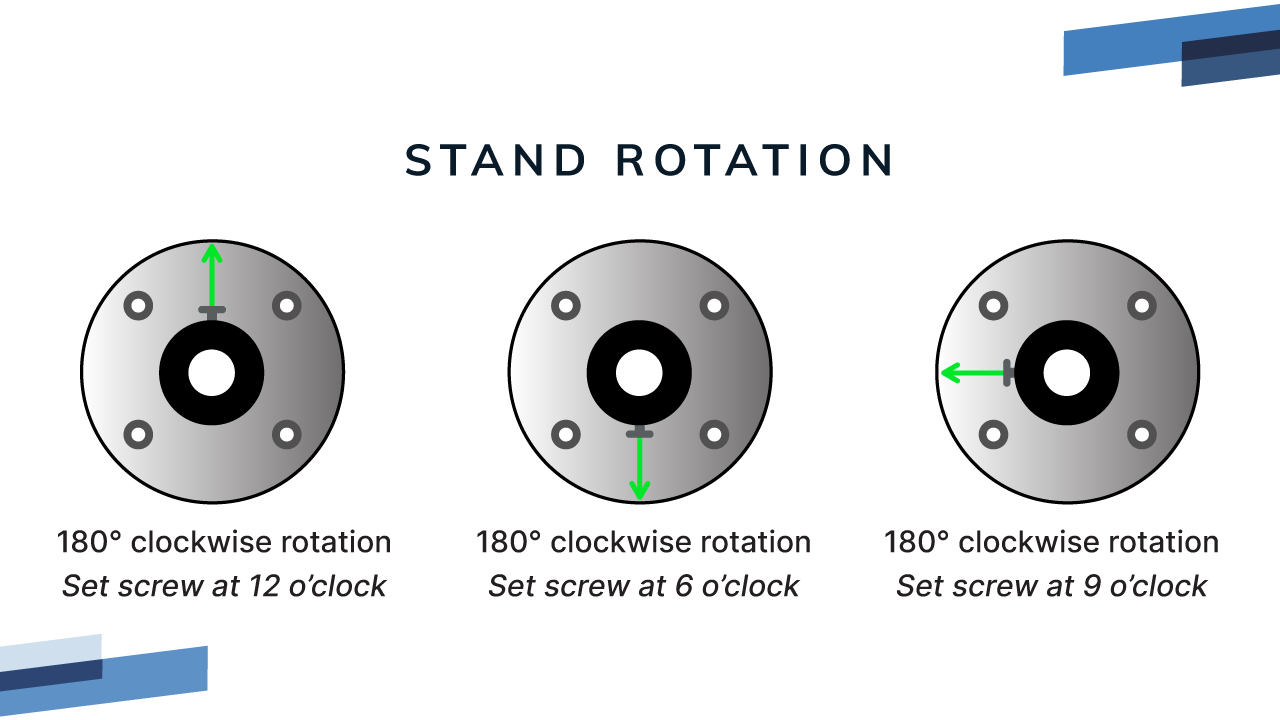

Stand rotation is based on the orientation of the set-screw in relation to the keyed hole on the bottom of the stand.

Stability Base Swivel Mounting

1. Remove the plastic covers from the stand base
2. Remove the set screw, swivel cap and bushing
3. Insert the bushing into the keyed hole in the stand; It should snap in place
4. Screw/bolt the swivel onto the countertop in the desired orientation (see rotation characteristic above)
5. Place the stand over the swivel
6. Replace the swivel cap and tighten the set screw
7. Rout cables and replace the plastic stand covers.

Simplicity Stand Swivel Mounting

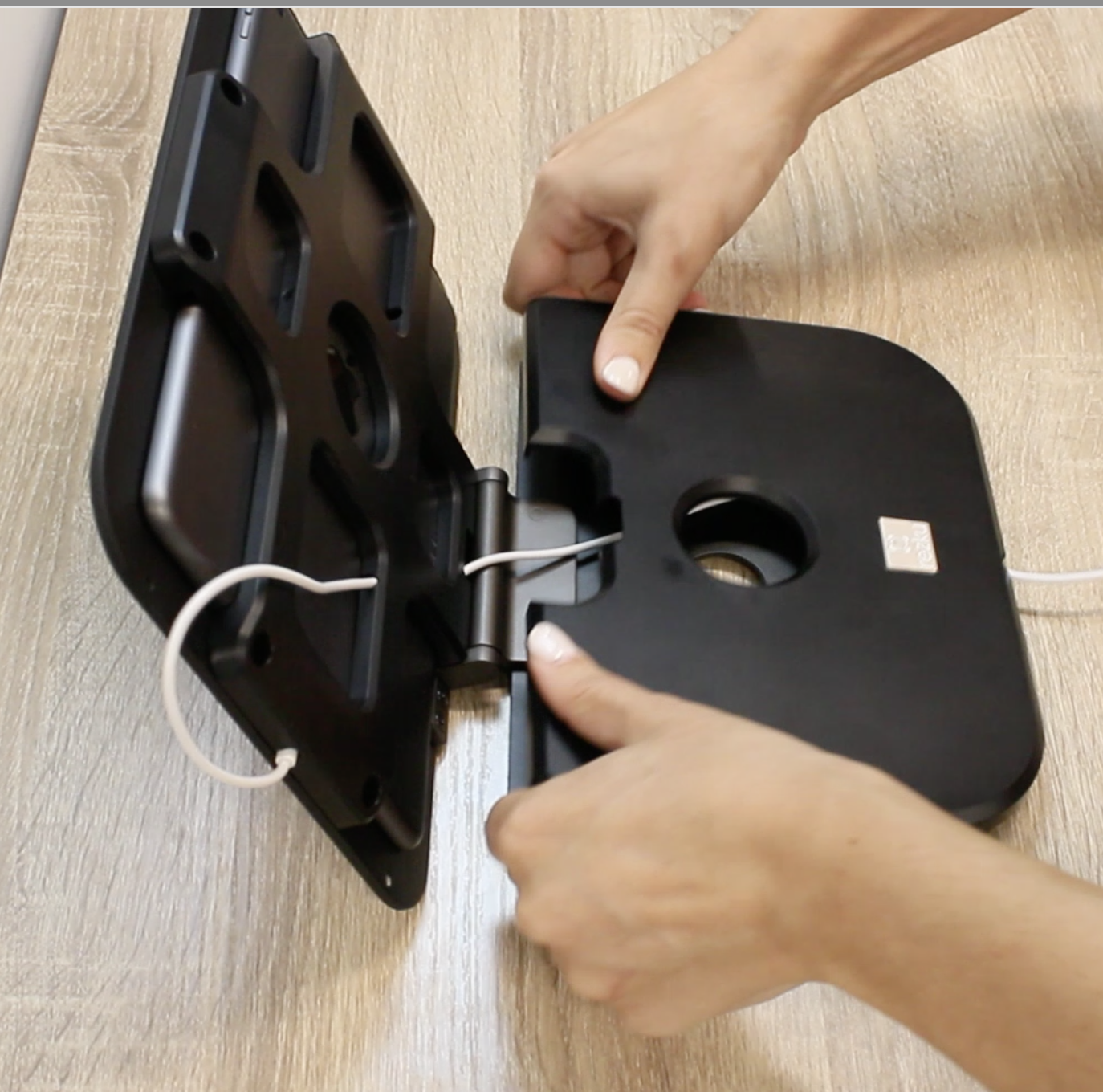

1. Carefully snap off the plastic cover on the baseplate from the corners
2. Remove the set screw, swivel cap and bushing
3. Insert the bushing into the keyed hole in the stand; It should snap in place
4. Screw/bolt the swivel onto the countertop in the desired orientation (see rotation characteristic above)
5. Place the stand over the swivel
6. Replace the swivel cap and tighten the set screw

The easiest way to remove the baseplate cover is by flexing the plastic to release the corners.

1. Route cables and replace the plastic baseplate cover.
