Two versions of the printer are available from Rezku. The models vary slightly in connectivity between models. The MCP30 does not have bluetooth or lightning connectivity; the MCP31 does. The variation sold by Rezku is the MCP-LBi.

Specifications

Paper type: Thermal

Paper Width: 3-inch (80mm)

Paper Roll Diameter: 83mm

Connectivity

NOTE: Depending on the model connections may be different. Not all units are equipped with ethernet and/or bluetooth. The MCP-30 does not have bluetooth.

• USB-B
• USB-A (for lightning)

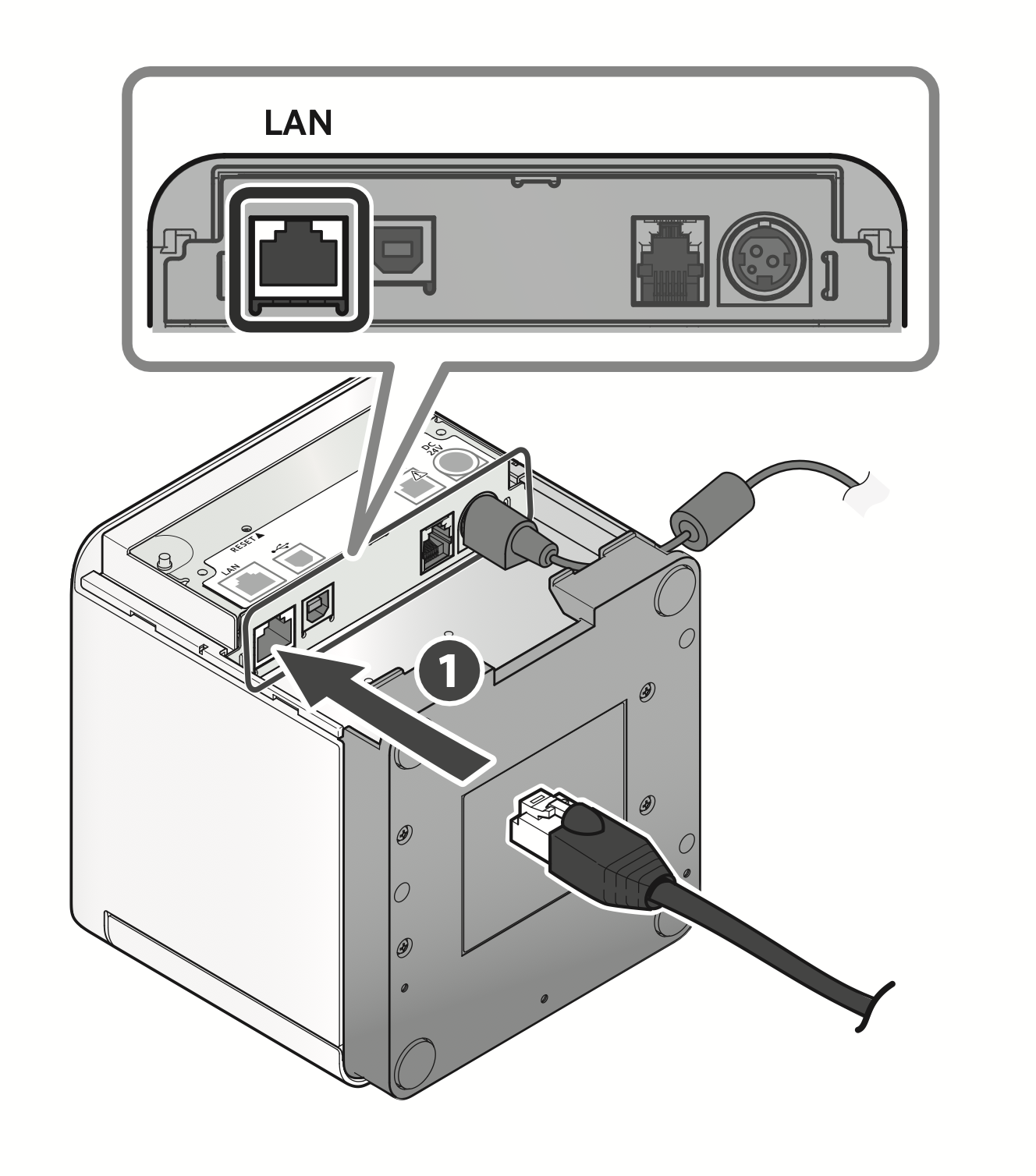

• Ethernet
• Cash drawer (Drawer Kick)
• Bluetooth

Bluetooth Pairing

The printer is ready to pair when it is not already paired to another device. To pair, go to the iPad bluetooth settings and select the Star MCP-31 printer. If you are intending to pair the printer to a different iPad, first "forget" the printer in the iPad bluetooth settings it is currently paired to.

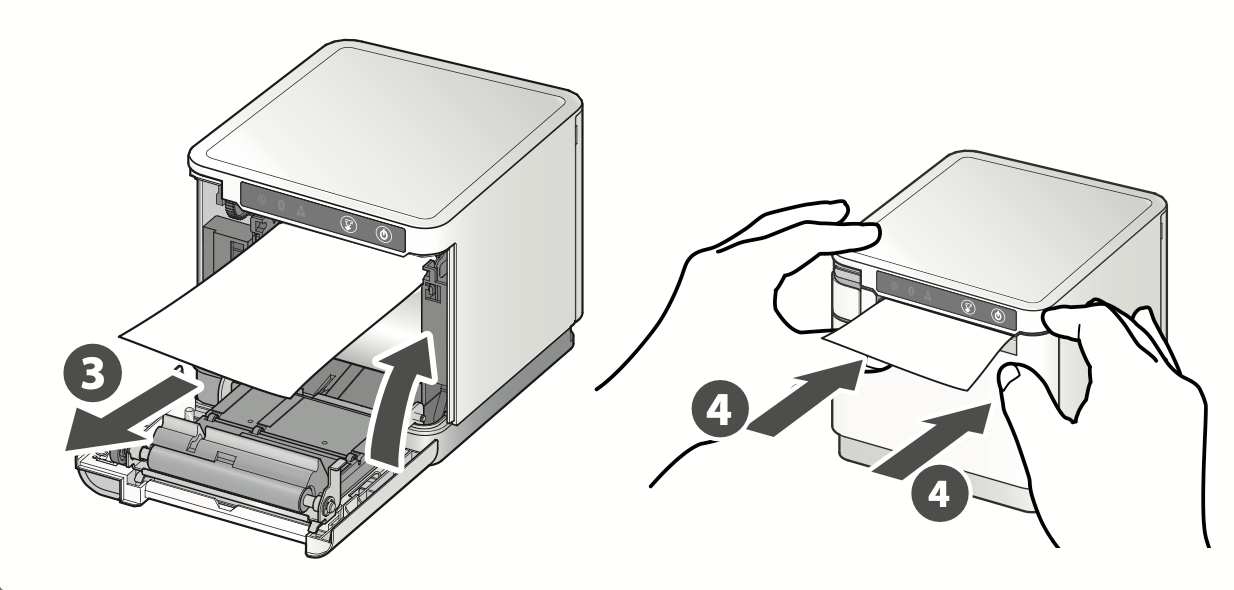

Loading the Paper

The printer uses a front-loading design.

• Release the front latch for the cover
• Open the cover and remove the spent paper core
• Insert the new paper roll with the paper feeding from the top of the roll (as pictured)
• Close the front cover of the printer so it latches
• The printer will reset automatically

Printer Test Sheet

• Turn off the printer
• Hold down the FEED button
• Turn on the printer while continuing to hold the FEED button
• When the test sheet starts printing release the FEED button

Communication Settings (MCP-31 Only)

• Turn the printer off
• Insert a pen with a small tip and hold down the RESET switch
• Keep holding the RESET switch down while turning the printer on (power LED lights)
• Keep holding RESET until the network LED (green) flashes.
• Release the RESET button
• Press the FEED button to select the communication interface (both network and bluetooth lighted)
• Hold the FEED button to confirm the selection

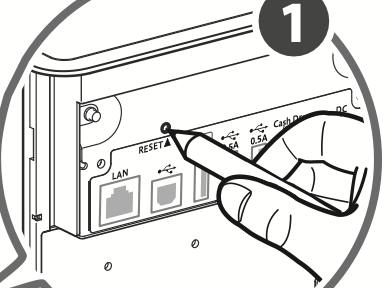

Reset switch location

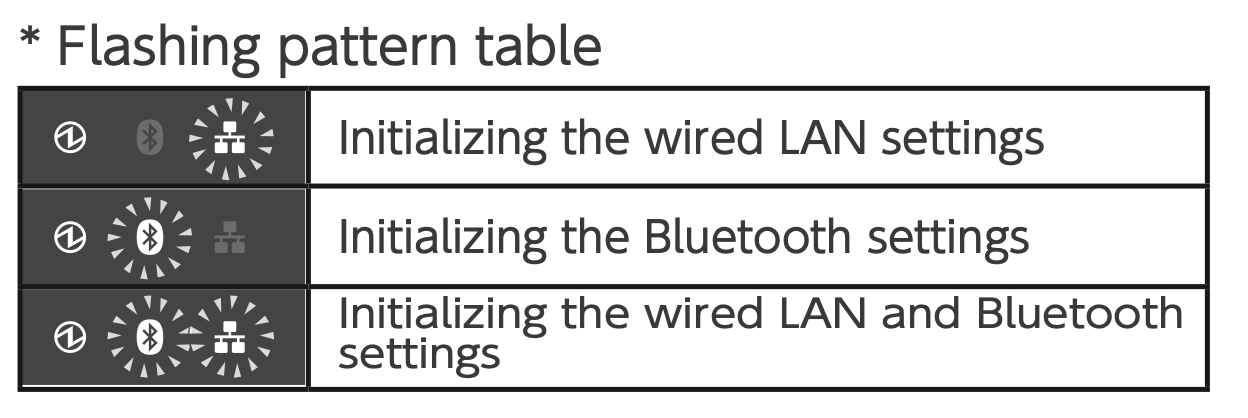

interface Initialization table
