Vault Connect Mobile Case

iPad

The case is compatible with the current iPad Mini (as of August 2024) Gen 6.

Readers

Both the Adyen AMS1 and NYC1 can be used while mounted to or disconnected from the handheld case. When docked, both card readers benefit from pass-through charging from the case's built in back up battery, for extended operating times.

Sled Assembly

The mobile case uses an interchangeable sled to provide compatibility with either the AMS1 or the NYC1 card reader.

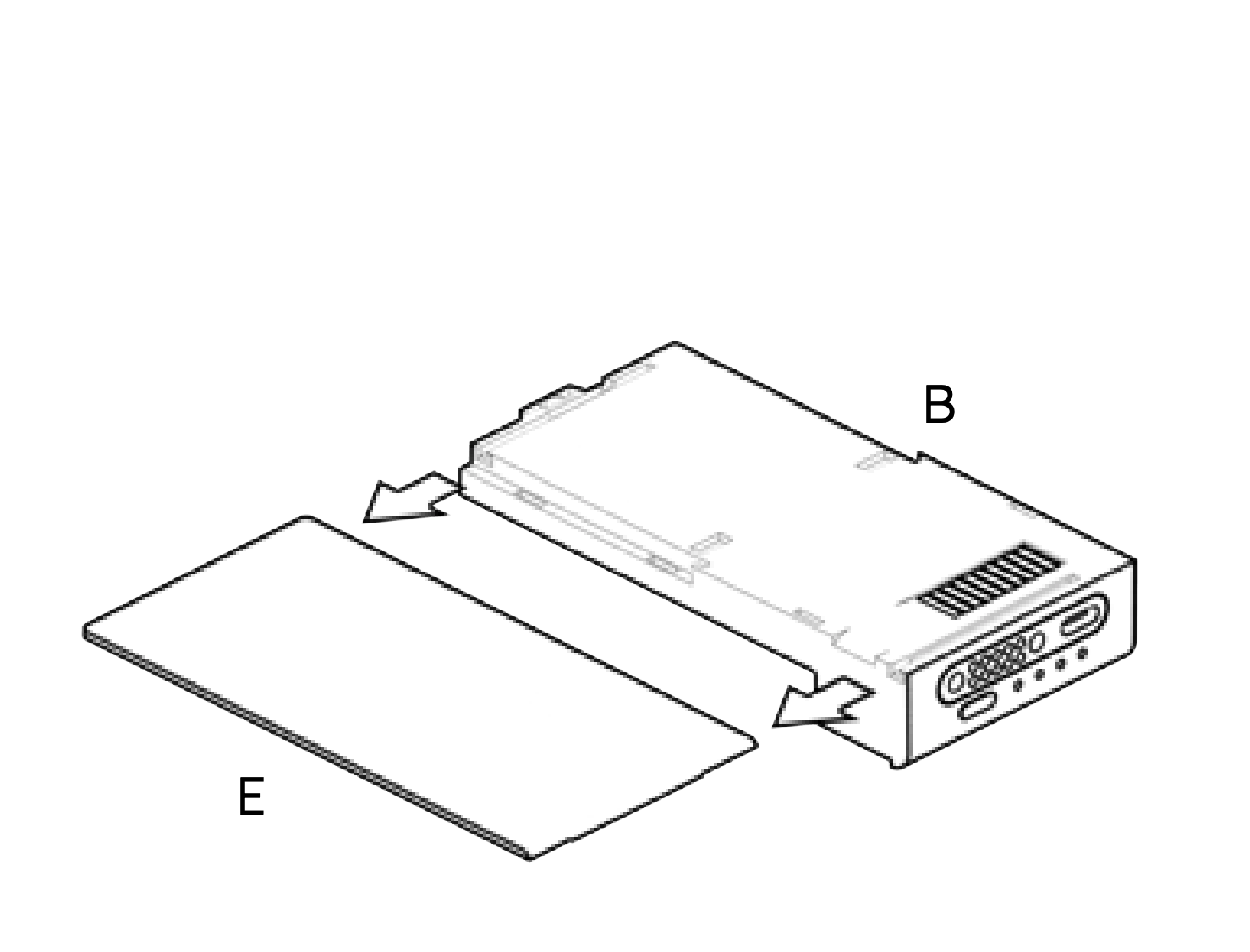

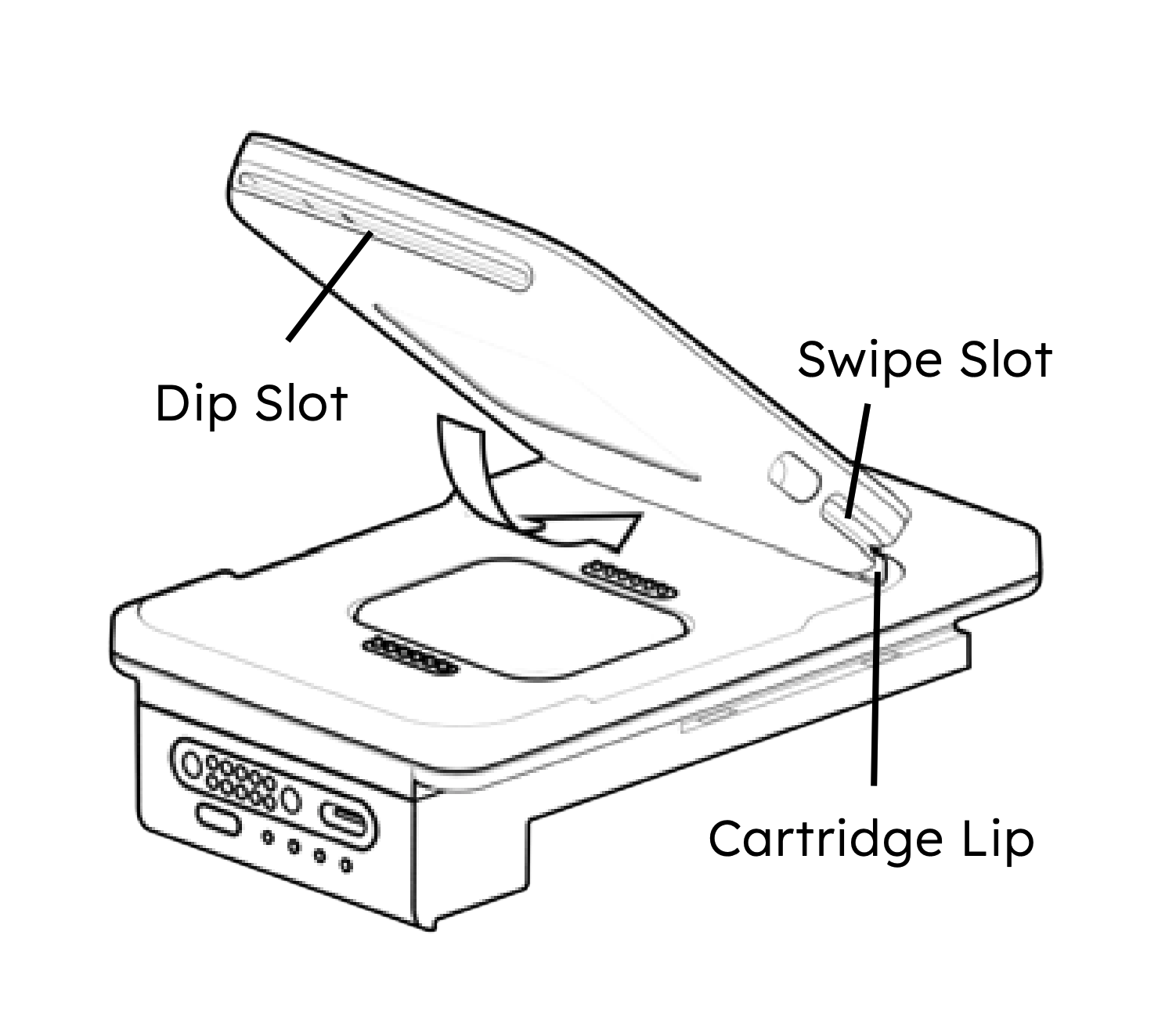

1. Remove the blank plate – The sled initially comes with a cover. Slide it to the side to remove the blank plate.

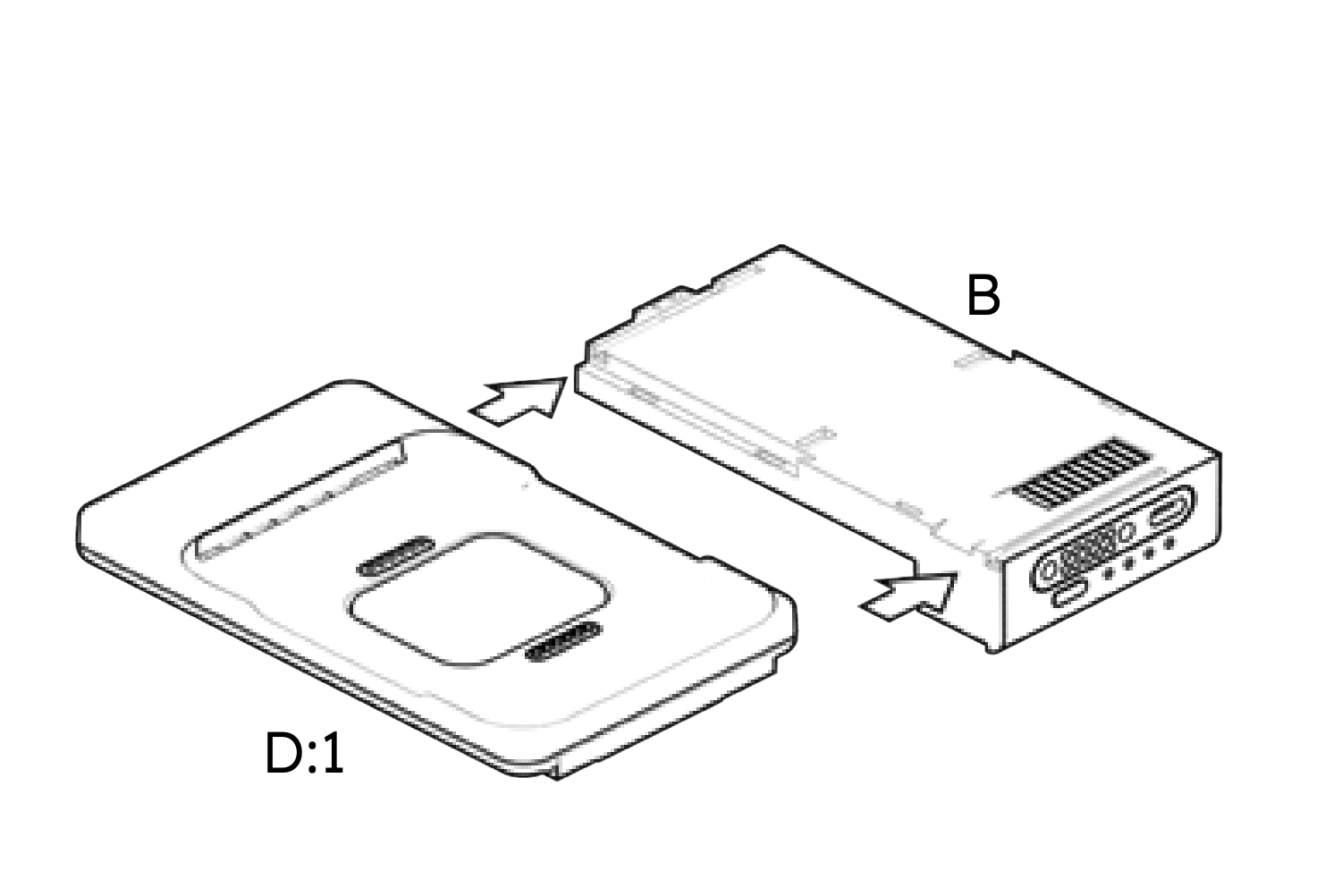

2. Slide on the compatible dock – Slide the docking adaptor for either the NYC1 or AMS1 onto the sled. You will only be shipped the docking adaptor for the card reader you've ordered.

3. Clip in the card reader – Insert the AMS1 or NYC1 without forcing it. When the card reader is correctly oriented it should go in easily and be secure (without falling out) when the case is inverted.

Base Case Assembly

These instructions are for the case assembly, once the sled has already been configured.

Attach the card reader sled to the case

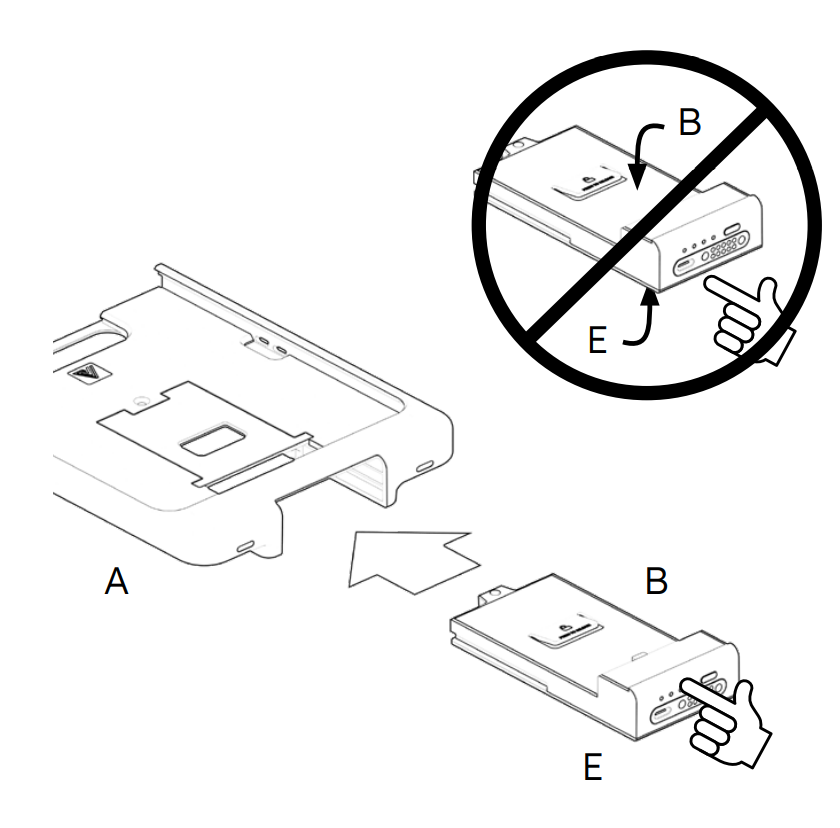

1. Push the sled into the slot in the case from the connectors on the sled. WARNING: Do not push the sled in while holding the card reader cartridge or it may detach.

2. Make sure the sled is fully seated and flush with the body of the case.

3. Optionally install the set screw for the sled

To remove the sled from the case

1. Remove the sled set screw if installed.

2.Hold down on the locking tab (indicated with a lock icon) in the center of the case.

3. Slide out the sled by reversing the installation steps.

WARNING: If the card reader cartridge disconnects from the sled after it is installed in the case, the sled must be removed from the case to re-attach the card reader cartridge. Attempting to re-attach the card reader cartridge without removing the sled from the case may cause damage to the sled and or cartridge.

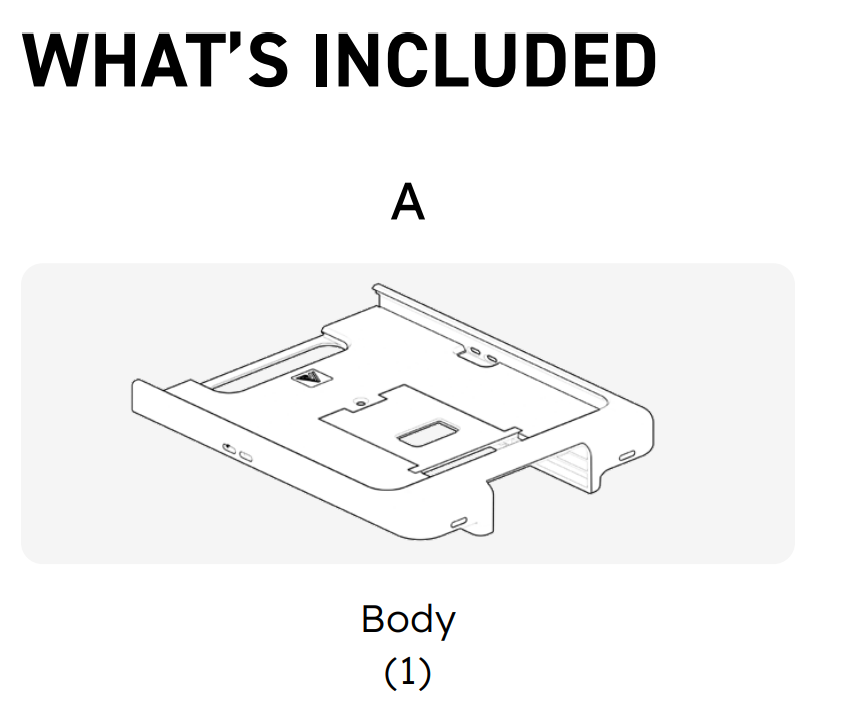

Completing Case Assembly

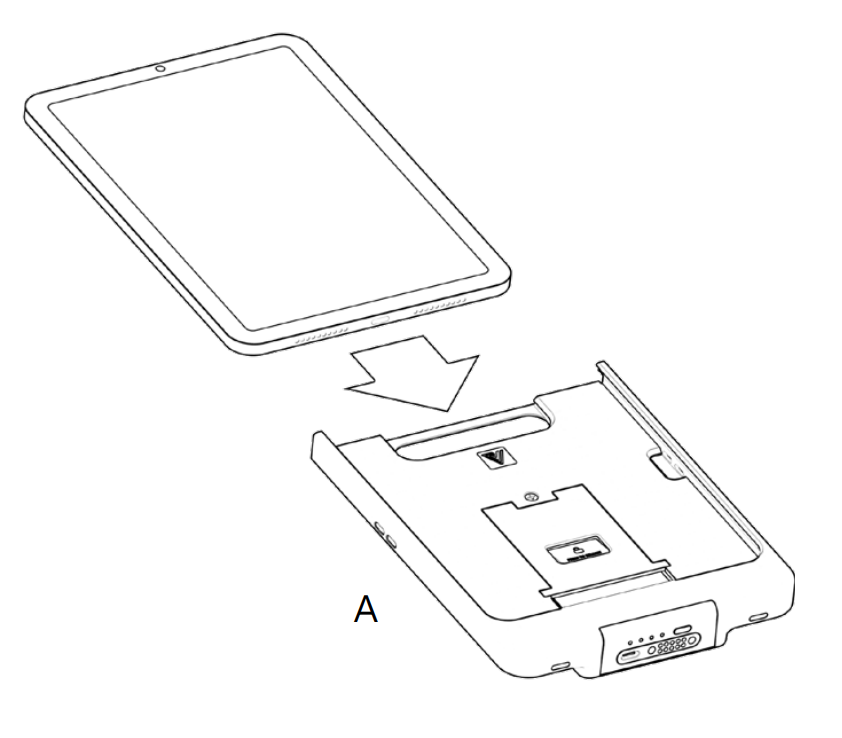

1. Slowly slide the iPad Mini into the body section of the case

2. Ensure that the USB-C charging port if the iPad is correctly aligned with the connector on the sled before fully seating the iPad.

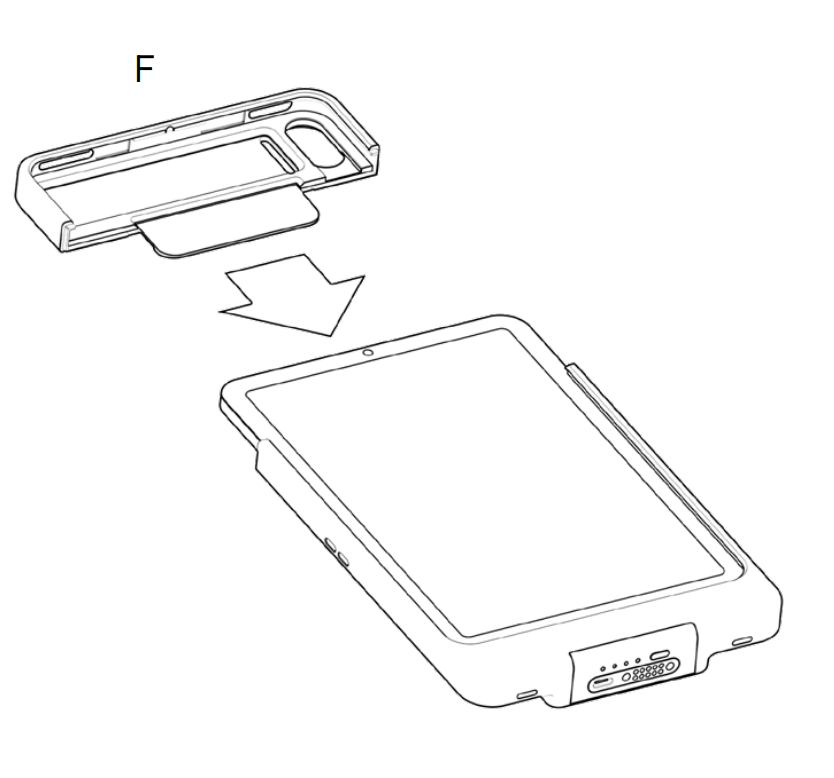

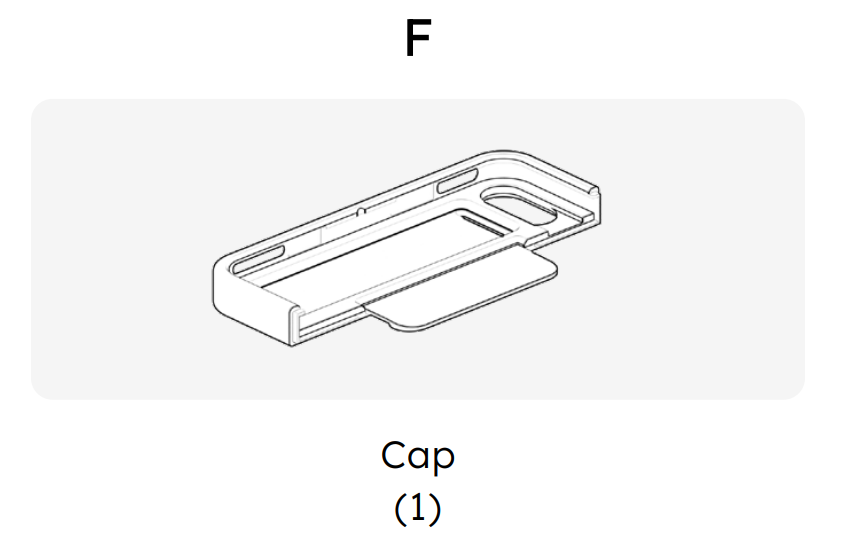

3. Slide the case "cap" onto the iPad, ensuring that the locking tab is fully seated.

4. This completes the assembly.

To remove the iPad from the case

1. Press on the locking tab holding the cap to the case body.
2. Slide the cap off the iPad.
3. Carefully slide out the iPad from the case body, making sure not to put pressure on the front glass.

Handle Installation

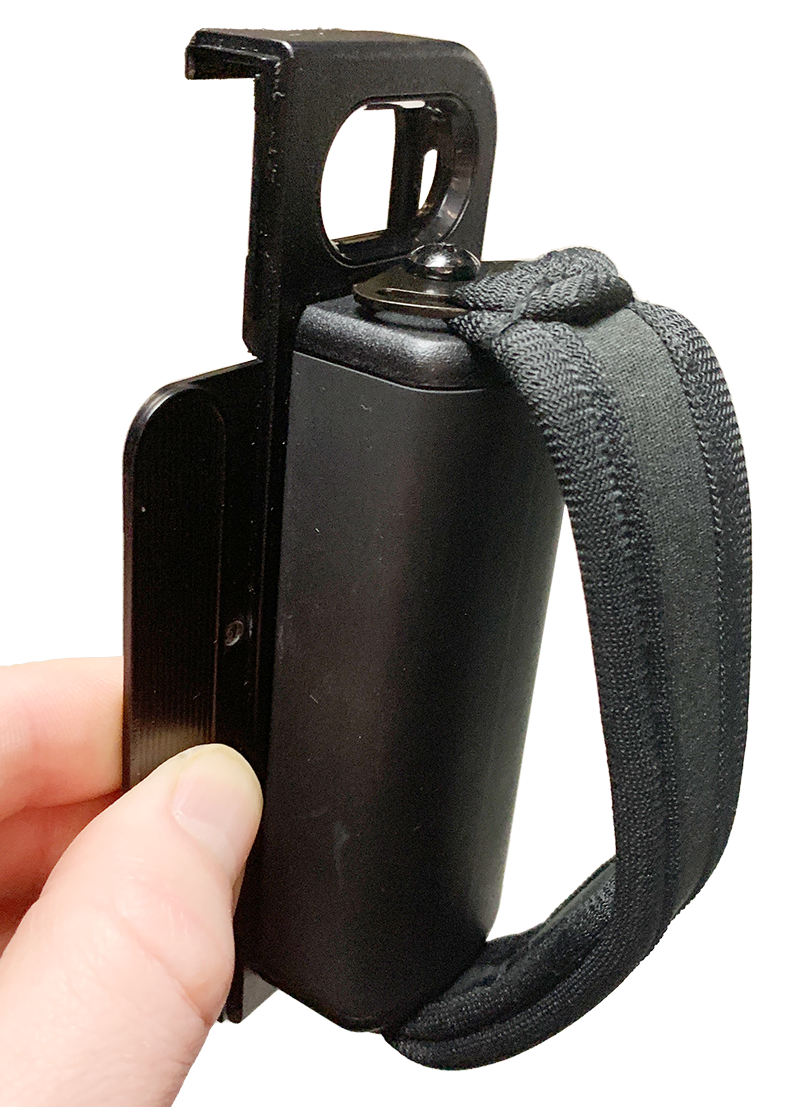

The handle is a rubber grip with a strap that securely mounts to the case. The handle installs onto the case cap and requires a Philip's head screwdriver for assembly.

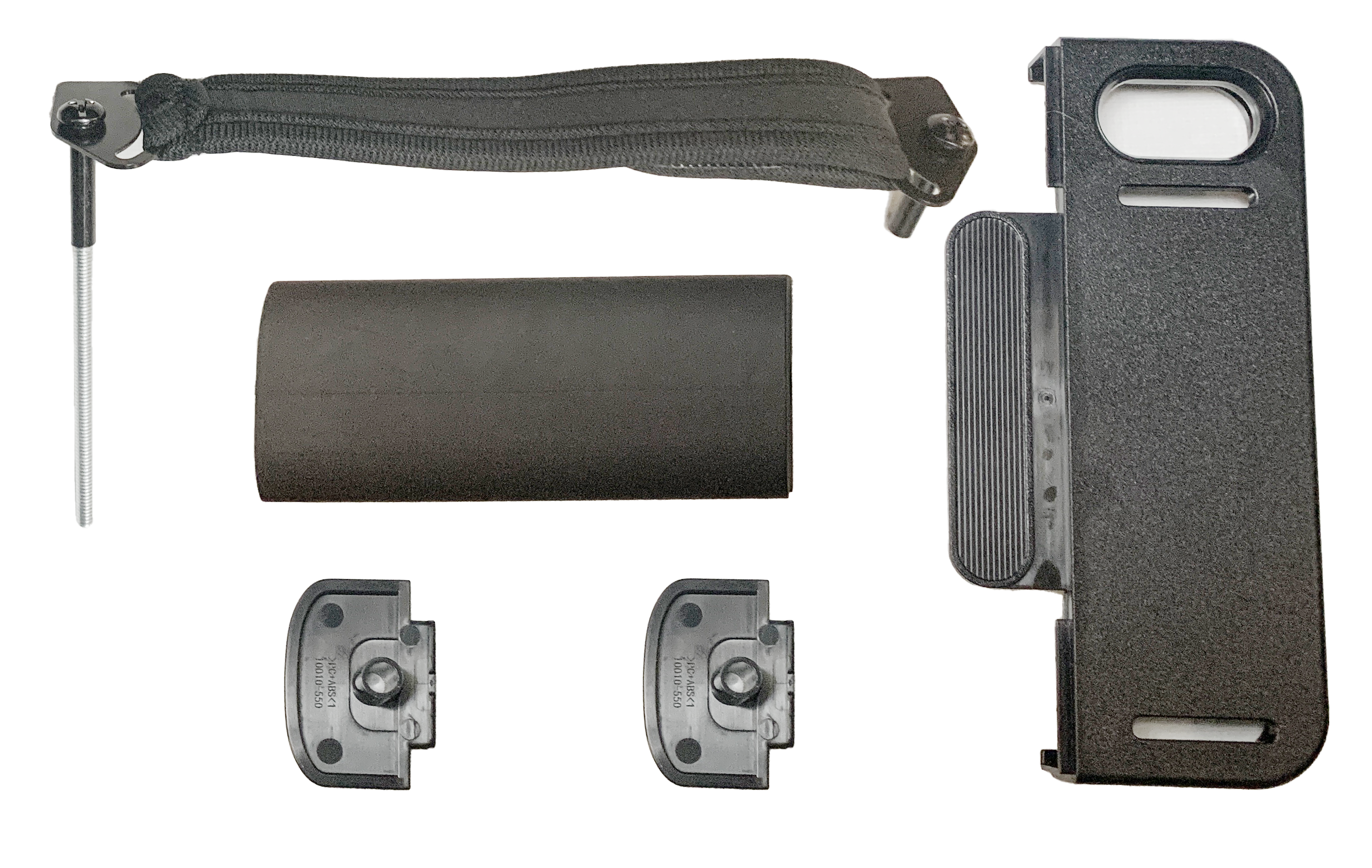

The handle kit includes:

• 1 Strap bracket with long threaded bolt
• 1 rubber handle
• 2 handle brackets

To install the handle:

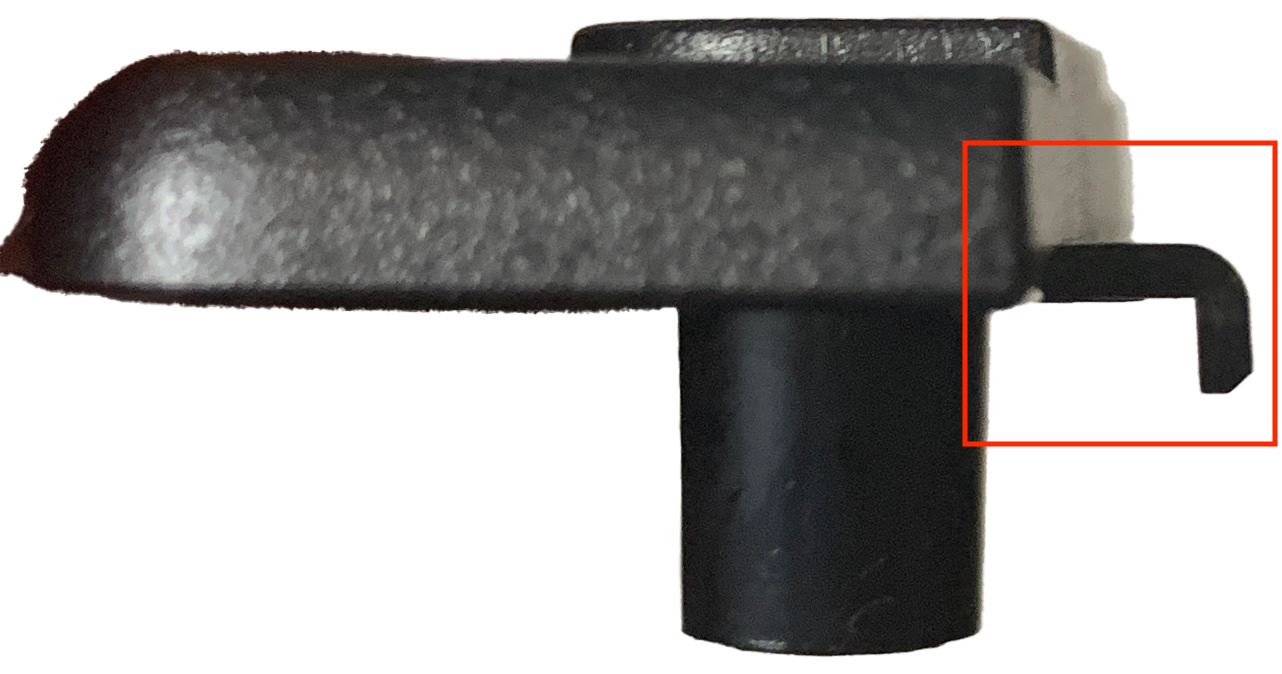

The handle brackets have an L-shaped lip that hook into the slots on the cap.

1. Insert one of the handle brackets into the top slot on the cap with the L facing downward.

2. Position the rubber handle in place, lining up the hole in the handle with the hole in the bracket.

3. Insert the remaining handle bracket on the bottom of the rubber handle with the L facing upward.

4. Run the threaded bolt with attached strap through the center hole of the rubber handle.

5. Secure the handle by tightening the screws.

Charging the Mobile Case

The case can be charged with a USBC type connector and a standard phone-charging brick. The sled is equipped with a built in battery. To check the status of the battery, hold the button on the bottom of the sled near the gold connectors. The number of lights indicates the level of charge.

100% Battery = 4 lights
75% Battery = 3 lights
50% Battery = 2 lights
25% Battery = 1 lights

Successful card reader connection is displayed by a green light visible on the card reader device itself.

The case comes with a USB-C charging cable. Optionally, there is an available docking station for the mobile case, and a multi-unit docking station.

When seating the mobile case into the charging dock make sure the gold contact pins on the dock seat fully against the contacts on the case. Charging is indicated when the docking station shows a red (charging) or green (charged) light, indicated for the bay the case is seated in. Also, the iPad shows a charging icon on the screen.

Batteries

The Adyen NYC1 and AMS1 card readers and iPad are equipped with batteries. When Charging, the charging cycle goes Charging Dock > Case Battery > Card Reader Battery > iPad Battery. The iPad will not charge until everything else is fully charged.

TIP: To save iPad battery it is recommended to turn down the screen brightness to the lowest comfortable level. Additionally, dock the mobile case into the charger whenever it is not in use.
